Hi!

I am on a strike!

This time we are divning into haproxy and how to make a HighAvilable cluster with HA proxy

We start of with the big steps.

Install OS (ubuntu in mine case)
Configure HA cluster with keepalived
Install haproxy
Test

Goal

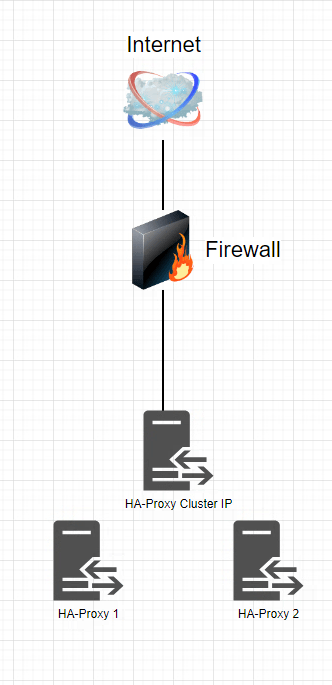

I wanted a proxy soloution that hade failover, so I can patch things when I needed. Below is a picture of this small soloution

OS installation

Won’t go over installation of the OS. Install the os that you like and support HAproxy. Do not create a user named proxy or haproxy.

HA function on ubuntu with keepalived

To install keepalived

sudo apt-get install keepalived, this is done on both nodes.

sudo vim /etc/keepalived/keepalived.conf

The keeplive config on both nodes with the check of running haproxy:

In code:

# keepalived.conf generated for haproxy-1
vrrp_script chk_haproxy {
  script "killall -0 haproxy"  # check the haproxy process
  timeout 1
  interval 2  # every 2 seconds
  weight 2  # add 2 points if OK
}

vrrp_instance V0 {
        interface ens160
        state MASTER
        virtual_router_id 1
        priority 100
        # use_vmac
        # vmac_xmit_base
        virtual_ipaddress {
            172.20.40.112/24

        }
        track_script {
            chk_haproxy
        }
}

Test ha function

Here I rebooted every node one at a time and I did not loose any ping!

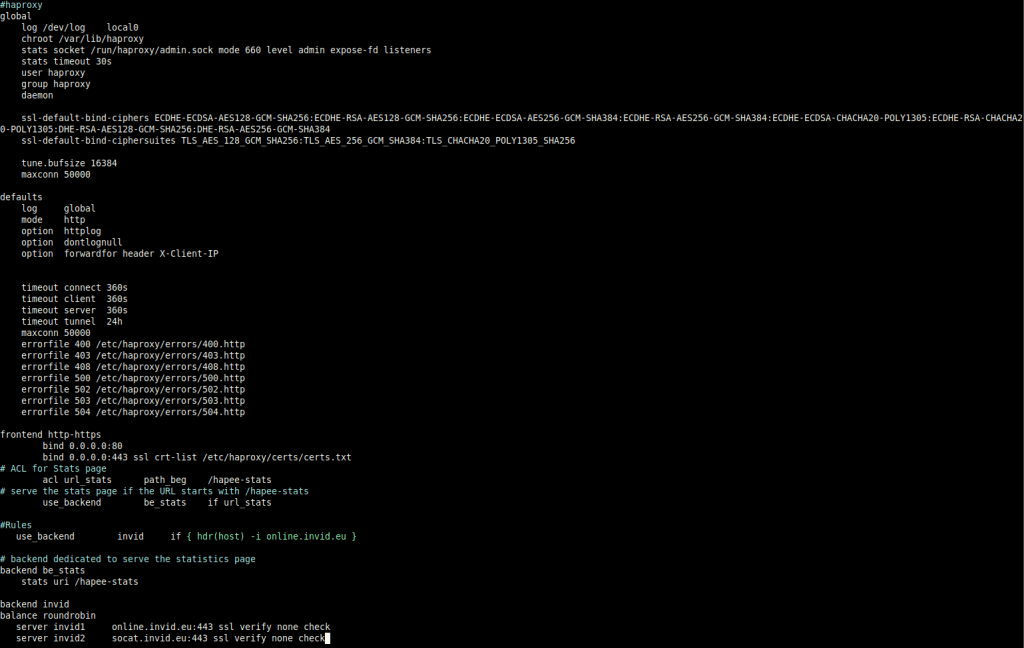

HA proxy config

This is just a test so this config is not complete, just to test the function of HA
What I can say if you want support for more than 1 certificate you can specify a file and in that file you set the certs that you want to load.

#haproxy
global
    log /dev/log    local0
    chroot /var/lib/haproxy
    stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
    stats timeout 30s
    user haproxy
    group haproxy
    daemon

    ssl-default-bind-ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384
    ssl-default-bind-ciphersuites TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256

    tune.bufsize 16384
    maxconn 50000

defaults
    log     global
    mode    http
    option  httplog
    option  dontlognull
    option  forwardfor header X-Client-IP


    timeout connect 360s
    timeout client  360s
    timeout server  360s
    timeout tunnel  24h
    maxconn 50000
    errorfile 400 /etc/haproxy/errors/400.http
    errorfile 403 /etc/haproxy/errors/403.http
    errorfile 408 /etc/haproxy/errors/408.http
    errorfile 500 /etc/haproxy/errors/500.http
    errorfile 502 /etc/haproxy/errors/502.http
    errorfile 503 /etc/haproxy/errors/503.http
    errorfile 504 /etc/haproxy/errors/504.http

frontend http-https
        bind 0.0.0.0:80
        bind 0.0.0.0:443 ssl crt-list /etc/haproxy/certs/certs.txt
# ACL for Stats page
        acl url_stats      path_beg    /hapee-stats
# serve the stats page if the URL starts with /hapee-stats
        use_backend        be_stats    if url_stats

#Rules
   use_backend        invid	if { hdr(host) -i online.invid.eu }

# backend dedicated to serve the statistics page
backend be_stats
    stats uri /hapee-stats

backend invid
balance roundrobin
   server invid1     online.invid.eu:443 ssl verify none check
   server invid2     socat.invid.eu:443 ssl verify none check

Test

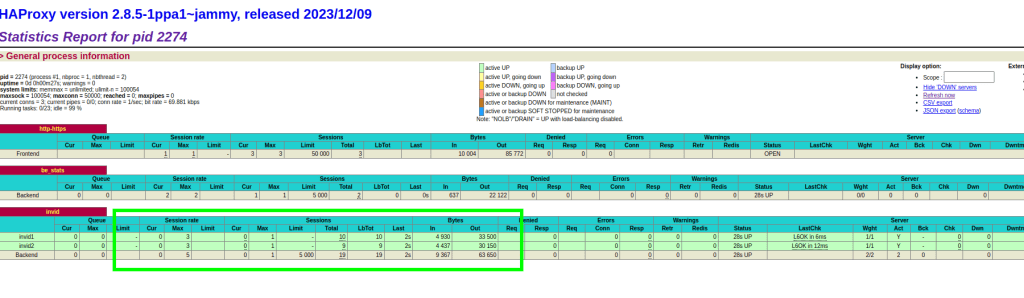

On the status page we can se both server are receiving data

Shut down one of backend servers and still working

Stop haproxy on one node still working

There is a lot of things you can do with haproxy! You can use it as a waf and tcp proxy. Next ting to test if time is with me.

That was all for now!

Keep hacking

//Roger
