Install LogonTracer in my hacking rig. #blueteam @jpcert_en #LogonTracer #ubuntu #linux #infosec #logging #hacking @Docker #logontracer @neo4j

It is time to test LogonTracer from @jpcert_en you can get your copy from https://github.com/JPCERTCC/LogonTracer

From the website:
LogonTracer is a tool to investigate malicious logon by visualizing and analyzing Windows active directory event logs.

We start with a new installation of ubuntu. The servername for this is Logon. The installation is not in this post.

LogonTracer for me is like Bloodhound for event logfiles.

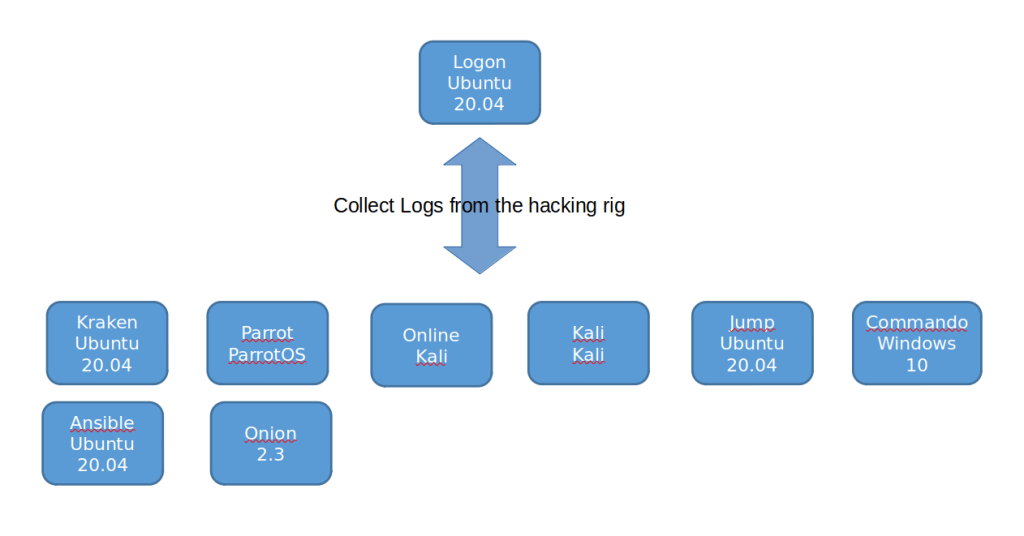

We start with a picture

First I tried to do the installation, but i was a pain in the ass to get this up and running under ubuntu 20.04. So I switched to docker instead.

First install some stuff to get docker up and running.

sudo apt-get install \
apt-transport-https \
ca-certificates \
curl \
gnupg-agent \
software-properties-common

Then import the key from docker

sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

Add repo for docker

sudo add-apt-repository \
"deb [arch=amd64] https://download.docker.com/linux/ubuntu \
$(lsb_release -cs) \
stable"

Then we install docker

sudo apt-get install docker-ce docker-ce-cli containerd.io

Finally we pull the LogonTracer from docker

sudo docker pull jpcertcc/docker-logontracer

Then we run LogonTracer docker instance

sudo docker run \
   --detach \
   --publish=7474:7474 --publish=7687:7687 --publish=8080:8080 \
   -e LTHOSTNAME=172.21.21.29 \
   jpcertcc/docker-logontracer

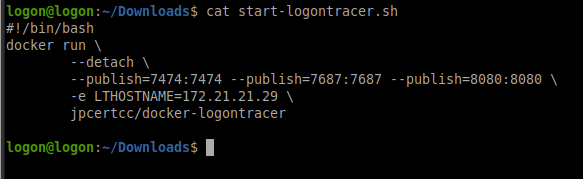

We create a sh file so it is easy to start:

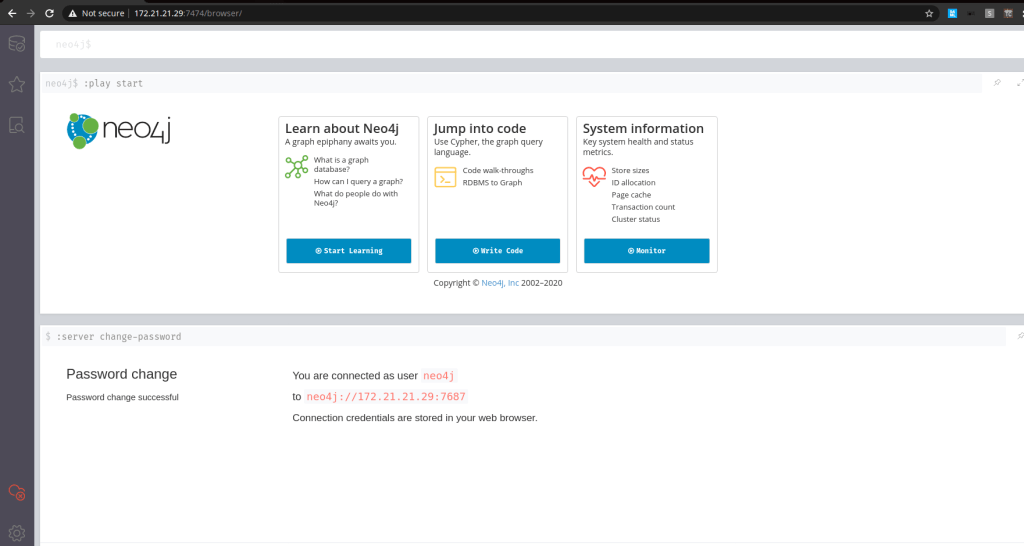

Access neo4j with username: neo4j and password: password

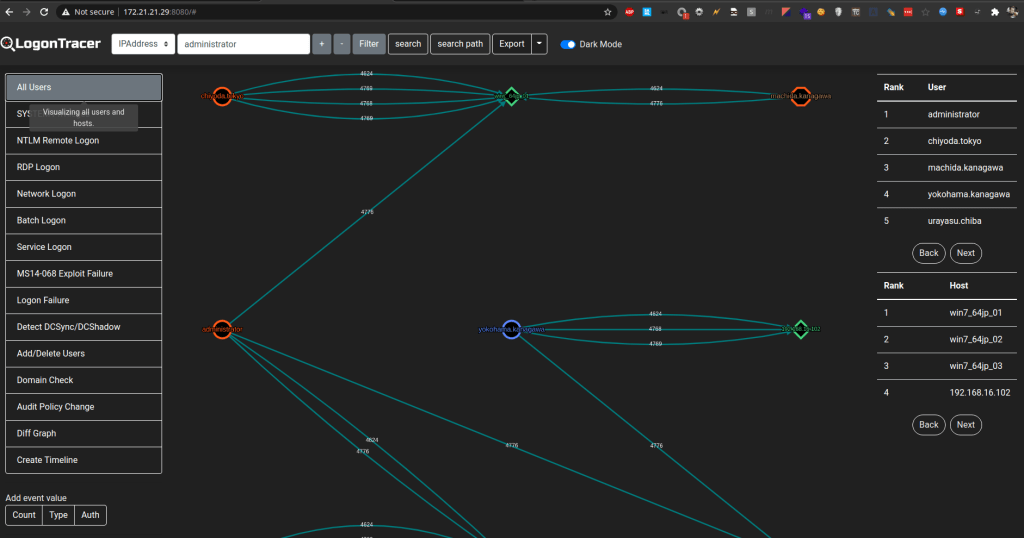

Access LogonTracer

http://172.21.21.29:8080/#

Clear the “demo” database from neo4j

MATCH (n) OPTIONAL MATCH (n)-[r]-() DELETE n,r

Use above command in neo4j

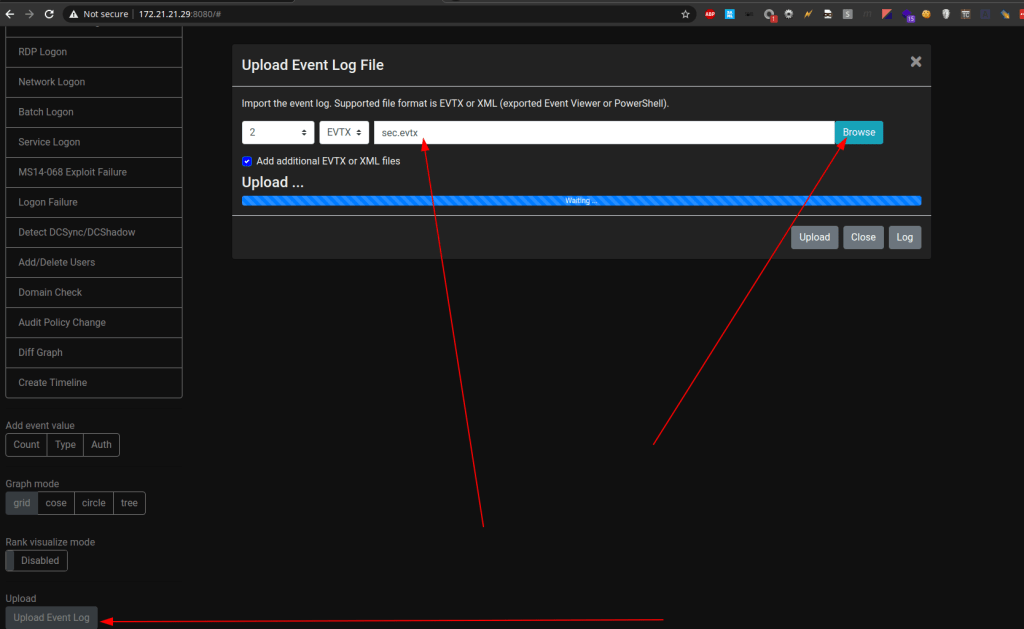

Import event log files from windows.

  1. Export evtx log files from windows
  2. import the to LogonTracer

After import we can search for the goodies!

I hope this will help someone to get started with LogonTracer.
